Standby Database Concepts

What Is a Standby Database?

A standby database is a database replica created from a backup of a primary database. By applying archived redo logs from the primary database to the standby database, you can keep the two databases synchronized.

A standby database has the following main purposes:

• Disaster protection
• Protection against data corruption
• Supplemental reporting

If the primary database is destroyed or its data becomes corrupted, you can perform a failover to the standby database, in which case the standby database becomes the new primary database. You can also open a standby database with the read-only option, thereby allowing it to function as an independent reporting database.

This section contains the following topics:

• Configuration Options
• Advantages and Disadvantages
• Compatibility and Operational Requirements
• Concepts and Terminology

Configuration Options:

You can set up a standby database in several different ways, depending on the method for:

Transferring archived redo logs to the standby site Applying archived redo logs to the standby database

For example, Oracle's managed standby environment allows the primary database to automatically archive redo logs to the standby database site so long as the standby instance is started. If you implement a non-managed standby environment, you must transfer the logs manually.

If the standby database is in managed recovery mode, the standby database automatically applies logs received from the primary database. You can also apply logs manually to the standby database by placing it in manual recovery mode. At any time you can open the standby database in read-only mode for reporting purposes.

Most database administrators (DBAs) choose a managed recovery environment. You may prefer a non-managed environment if:

• You do not want to maintain a Net8 connection between the primary and standby sites, which is required for managed recovery.
• You want to create a time lag between the archiving of a log at the primary database and the application of the log to the standby database. A time lag protects against the transfer of corrupted or erroneous data from the primary database to the standby database.

Advantages and Disadvantages

A standby database can be a powerful tool for both disaster prevention and supplementary reporting. For example, you can:

• Maintain a standby database in a location that is geographically remote from the primary database, or maintain several standby databases in geographically diverse locations.
• Maintain the primary and standby databases on different disk drives of the same machine, so that if the primary database's drive fails, you can activate the standby database and resume normal operations.
• Implement a managed standby configuration, whereby a standby database automatically applies archived redo logs that are automatically shipped to the standby site by a primary database. In this way, changes to a primary database are regularly propagated to a standby database.
• Make a standby database the new primary database with minimal loss of time and data if the primary database is completely destroyed.
• Provide possible protection against erroneous batch jobs, user errors (for example, truncating the wrong table), or application corruptions on the primary database by not applying archived logs containing corrupt data to the standby database. You can then activate the uncorrupted standby database, making it the primary database.

While a standby database can be a tremendous benefit in your backup and recovery strategy, it involves costs as well. For example, a standby database requires:

• An additional computer if you want to maximize disaster prevention by maintaining a standby database on a separate host
• Implementation and maintenance of a Net8 connection if you use the managed standby environment
• Additional system resources and extra storage space no matter which implementation you choose
• Administration of the standby database to mirror some structural operations (for example, adding a tablespace or datafile) performed on the primary database

Concepts and Terminology

Familiarize yourself with the following terms, which are used throughout the subsequent chapters:

failover

The operation of turning a standby database into a normally functioning primary database. This operation is also called standby database activation. Note that after a failover, you cannot switch the standby database back so that it becomes a standby database again.

gap sequence

A sequence of archived redo logs that must be manually applied to a standby database before it can be placed in managed recovery mode.

managed recovery mode

A standby database mode initiated by entering the following SQL*Plus statement:

RECOVER MANAGED STANDBY DATABASE;

When a standby database runs in managed recovery mode, it automatically applies redo logs received from the primary database.

managed standby environment

A configuration in which a primary database automatically archives redo logs to a standby site. If the standby database is in managed recovery mode, it automatically applies the logs received from the primary database to the standby database. Note that in a managed standby environment, a standby site continues to receive archived logs even if the standby database is not in managed recovery mode.

manual recovery mode

A standby database mode initiated by issuing the following SQL*Plus statement:

RECOVER STANDBY DATABASE;

This mode allows you to recover a standby database manually.

non-managed standby environment

Any environment in which the primary database does not automatically archive redo logs to the standby site. In this environment, you must manually transfer archived logs to the standby site and manually apply them.

primary database

A database used to create a standby database. Every standby database is associated with one and only one primary database. A single primary database can, however, support multiple standby databases.

primary site

The location of the primary database. Note that the primary and standby sites can be on separate hosts or on the same host.

read-only mode

A standby database mode initiated by issuing the following SQL statement:

ALTER DATABASE OPEN READ ONLY;

This mode allows you to query the standby database, but not to make changes to it.

standby database

A database replica created using a backup of your primary database. A standby database has its own initialization parameter file, control file, and datafiles.

standby database environment

The physical configuration of the primary and standby databases. The environment depends on many factors, including:

• The number of standby databases associated with a primary database
• The number of machines used by the databases
• The directory structures of the machines used by the databases
• The network configuration

standby site

The location of the standby database. The standby site can be on the same host as the primary database or on a separate host.

Standby Database Modes

You can perform any of the following mutually exclusive operations on a standby database:

• Maintain it in manual recovery mode
• Maintain it in managed recovery mode
• Open it in read-only mode for queries

Although you cannot run the standby database in more than one mode at the same time, you can switch back and forth between the modes at will. For example, you can run in managed recovery mode, then open read-only, then switch to manual recovery, then return to managed recovery, as shown in Figure 1-1.

Figure 1-1 Switching Between Modes

Manual Recovery Mode

You have the option of placing the database in manual recovery mode, in which case you must continually and manually transfer and apply archived redo logs to the standby database to keep it synchronized with the primary database.

To perform manual recovery, connect to the standby database using SQL*Plus and issue the RECOVER STANDBY DATABASE statement. Figure 1-2 shows an example of a database in manual recovery mode.

Figure 1-2 Standby Database in Manual Recovery Mode

Manual recovery mode is useful in environments in which you do not want to connect the primary and standby databases through Net8. Also, if for some reason the primary database is unable to automatically transfer archived redo logs to a standby database in a managed recovery environment, you may need to perform manual recovery to update the standby database.

Managed Recovery Mode

You can place the standby database in managed recovery mode, in which case the standby database automatically applies archived redo logs as it receives them from the primary database. To initiate managed recovery, connect to the standby database using SQL*Plus and issue the RECOVER MANAGED STANDBY DATABASE statement.

The principal advantage of running a database in managed recovery mode is that you do not have to transfer or apply archived redo logs manually: Oracle automates the procedure. For example, Figure 1-3 illustrates a case in which a primary database in San Francisco transmits archived redo logs to a standby site in Boston, where the standby database automatically applies them.

Figure 1-3 Automatic Updating of a Standby Database

Read-Only Mode

You can also open your standby database in read-only mode after terminating manual or managed recovery. You can then query the database and even store data in temporary tablespaces (so long as they already exist in the standby database) without affecting the datafiles or redo logs. You can return the standby database to manual or managed recovery mode at any time, without having to shut it down. Figure 1-4 shows a standby database in read-only mode.

Figure 1-4 Standby Database in Read-Only Mode

In a managed standby environment, the standby site continues to receive redo logs archived by the primary database and the control file continues to be updated with their records. Consequently, archiving continues to the standby site even though the standby database does not perform recovery while in read-only mode.

A read-only standby database is useful when you want to decrease the number of queries to the primary database. For example, if specific tablespaces in a primary database change infrequently but are accessed frequently, you can direct those queries to the standby database so the primary database does not become overloaded with read requests.

Failover to a Standby Database

Performing a failover to a standby database, also known as activation, occurs when you issue the following SQL statement:

ALTER DATABASE ACTIVATE STANDBY DATABASE;

You can issue this statement only when the standby database is mounted.

Figure 1-5 depicts a failover operation from a primary database in San Francisco to a standby database in managed recovery mode in Boston.

Figure 1-5 Failover to a Standby Database\

After you activate the standby database, it ceases to be a standby database and becomes a fully functional primary database. At this point, you can open the database in read/write or read-only mode and make changes or issue queries as usual.

CAUTION: Activating a standby database is a permanent operation. You cannot undo the activation and return the database to its former role as a standby database.

Consequences of Failover

Failover permanently transforms a standby database into a primary database. Because standby activation is a unidirectional operation, you cannot return the new primary database to any of the standby modes. In other words, you cannot perform a failover and then undo it.

CAUTION:Activating a standby database resets the online logs of the standby database. After activation, the archived logs from the standby database and the primary database are incompatible.

Another consequence of failover is that any other standby databases that were supporting the original primary database are now invalid as standby databases to the new, activated primary database. For example, assume primary database A supports standby databases B and C, as illustrated in Figure 1-6.

Figure 1-6 Primary Database with Multiple Standby Databases

If you perform a failover from A to B, then C does not function as standby database to the newly activated B. Because B's redo logs are reset, you cannot apply archived redo logs from B to C.

In some situations, maintaining multiple standby databases can lessen the repercussions of a failover. For example, assume the preceding scenario, with standby databases B and C supporting primary database A. The following events occur:

1. A's machine suffers a media failure.
2. You activate standby database B. Users now access B as the primary database.
3. You quickly fix the media problem on A's machine.
4. You shut down B, then restart A.
5. Users now access A as the primary database again. C continues to function as a standby database for A, while B is invalidated.

One consequence of this scenario is that any changes made to B while it briefly served as the primary database cannot be applied through archived redo logs. Note that you can generate a report of these changes by using the LogMiner utility and then reenter the changes manually into database A.

Testing the Standby Database Without Performing Failover

Because failover to a standby database destroys its standby functionality, perform this operation only when absolutely necessary. If you want to test the standby database, do not activate it--open it in read-only mode instead. By opening in read-only mode, you can query the standby database to ensure that it is correctly updating the datafiles with the redo logs received from the primary database.

Re-Creating the Original Primary Database After Failover

If you activate a standby database and then solve the problem at the original primary site that necessitated the failover operation, you have the option of re-creating the primary database on the original primary site. Perform the following steps, assuming the original primary site was on node A and the activated standby site is on node B:

1. Make a consistent backup of the activated standby database on node B.
2. Restore the backup created on node B to node A.
3. Shut down the activated standby database on node B.
4. Open the restored database on A. It is now the primary database.
5. Make a backup of the database on node A.
6. Use the backup of A to re-create the standby database on node B.

Manual Recovery Using Logs in the Gap Sequence

A gap sequence is created whenever you are unable to apply the next archived redo log generated by the primary database to the standby database. For example, the primary database archives log 100 to the standby site, but the standby control file has no knowledge of any logs after log sequence 89, because the standby control file was created when the most recent log archived by the primary database was 89. The gap sequence in this case spans logs 90 to 99.

To be able to begin managed recovery, you must first manually apply logs in the gap sequence to the standby database. After you have performed this manual recovery, you can issue the RECOVER MANAGED STANDBY DATABASE statement, at which point Oracle applies subsequent logs to the standby database automatically.

Typical Causes of Gap Sequences

Most commonly, gap sequences occur in the following situations:

• Creation of the standby database
• Shutdown of the standby database when the primary database is open
• A network failure that prevents archiving to the standby site

In the first two situations, the primary database can archive redo logs to the standby site, but the standby database control file is unaware of logs archived while it was not mounted. Whenever the primary database archives to the primary site but the standby control file does not contain records of logs that are necessary for recovery of the database, a gap sequence is created.

In the third situation, the primary database continues to archive locally, but is prevented from archiving to the standby site by a network failure. Archived logs accumulate at the primary site, but the standby control file does not know about them. Consequently, you must transfer the accumulated logs manually and then apply them in a manual recovery operation before managed recovery can begin.

The Gap Sequence Cycle

Because a gap sequence can occur whenever the primary database is archiving logs that the standby control file is not informed about, you can occasionally go through a gap sequence cycle. This cycle occurs whenever you must exit either managed recovery mode or read-only mode to perform manual recovery using logs in a gap sequence. After you have completed manual recovery of all logs in the sequence, you can return to managed recovery or read-only mode.

Managed Recovery and Read-Only Access Cycle

In most scenarios, you run the database primarily in managed recovery mode or primarily in read-only mode. During managed recovery, the standby site receives logs from the primary database and the standby recovery process applies them automatically. In read-only mode, the standby site receives logs from the primary database, but the standby recovery process does not apply them.

You can easily switch between managed recovery mode and read-only mode. Because the standby control file continues to be updated about incoming logs when it is in read-only mode, you do not have to perform manual recovery before returning to managed recovery mode.

Failover to the Standby Database

You can activate the standby database at any time, so long as the database is mounted. Typically, you perform a failover operation while the standby database is running in managed recovery mode. It can occur, however, that the primary database fails while you are performing manual recovery using logs in the gap sequence. In this case, you can activate the standby database even though it does not contain the latest changes made to the primary database.

After failover, you can back up the new primary database and start the standby life cycle over again by creating a new standby database.

How to restart the failed adpatch session

So many times adpatch session get failed because of prerequisit patch, some prerequisit steps which you forget to follow and some time it get failed because invalid objects etc.So from the below given steps you can secure the adpatch session and can restart from where it get failed.

1.  Backup the FND_INSTALL_PROCESSES table which is owned by the APPLSYS schema

$ sqlplus applsys/<password>

SQL> create table fnd_Install_processes_back as select * from fnd_Install_processes;

--The 2 tables should have the same number of records.

select count(*) from fnd_Install_processes_back;

select count(*) from fnd_Install_processes;

2.  Backup the AD_DEFERRED_JOBS table.

create table AD_DEFERRED_JOBS_back as select * from AD_DEFERRED_JOBS;

--The 2 tables should have the same number of records.

select count(*) from AD_DEFERRED_JOBS_backup;

select count(*) from AD_DEFERRED_JOBS;

3.  Backup the .rf9 files located in $APPL_TOP/admin/<SID>/restart directory.

At this point, the adpatch session should have ended and the cursor should be back at the Unix prompt.

$ cd $APPL_TOP/admin/<SID>

$ mv restart restart_backup

$ mkdir restart

4.  Drop the FND_INSTALL_PROCESSES table and the AD_DEFFERED_JOBS table.

$ sqlplus applsys/<password>

SQL> drop table FND_INSTALL_PROCESSES;

SQL> drop table AD_DEFERRED_JOBS;

5.  Apply the prerequisite patch. or complete the prerequisite steps.

6.  Restore the .rf9 files located in $APPL_TOP/admin/<SID>/restart_backup directory.

$ cd $APPL_TOP/admin/<SID>

$ mv restart restart_<patchnumber>

$ mv restart_backup restart

7. Restore the FND_INSTALL_PROCESSES table which is owned by the APPLSYS schema.

$ sqlplus applsys/<password>

SQL> create table fnd_Install_processes as select * from fnd_Install_processes_backup;

--The 2 tables should have the same number of records.

SQL> select count(*) from fnd_Install_processes;

SQL> select count(*) from fnd_Install_processes_backup;

8. Restore the AD_DEFERRED_JOBS table.

$ sqlplus applsys/<password>

SQL> create table AD_DEFERRED_JOBS as select * from AD_DEFERRED_JOBS_backup;

--The 2 tables should have the same number of records.

SQL> select count(*) from AD_DEFERRED_JOBS_backup;

SQL> select count(*) from AD_DEFERRED_JOBS;

9. Re-create synonyms

$ sqlplus apps/apps

SQL> create synonym AD_DEFERRED_JOBS for APPLSYS.AD_DEFERRED_JOBS;

SQL> create synonym FND_INSTALL_PROCESSES FOR APPLSYS.FND_INSTALL_PROCESSES;

10. Start adpatch, it will resume where it stopped previously.

How to apply patch in Oracle Applications

Patching is the most basic thing that an Oracle Apps DBA is expected to know.A patch is applied either to fix a bug or to add some new functionality.

Here are the steps for patching in Apps 11i:

1. First check that the patch is already applied or not.
select * from ad_bugs where bug_number='patchnumber';


Now if the patch is not applied then go through the read me of the patch on Metalink. Check for pre-reqs and download the patch.

2. Download the patch from http://support.oracle.com for e.g : 9936620

3. Transfer the patch on the server using FTP software.

4. Unzip the patch on the server.

5. Source the Application environment file (APPS<SID>_HOSTNAME.env).

6. Stop the apps services
./adstpall.sh apps/password
7. Bounce the database(This is not mandatory but it kills any hanging process)
./addbctl.sh stop immediate
./addlnctl.sh stop listnername
./addlnctl.sh start listnername
./addbctl.sh start
6. Put the system in Maintenance mode
Run adadmin--Goto step 5-Change Maintenance mode-step 1 Enable Maintenance mode

Note: If you do want to stop all application services and put application in maintenance mode, You can apply patch by using hotpatch option.

e.g: adpatch options=hotpatch

7. Goto the patch directory where you downloaded the patch.Unzip the patch as applmgr user(application owner).It will create a directory with the patch number.
8. Goto the directory with the patch number and run
$ adpatch
It will ask for patch log file,apps,system password,driver name(c,d,g,u),number of workers.

Note: If you have multi-node environment, then start applying patch from concurrent processing node.

9. Go through the patch log file and check that there is no error
10. Disable maintenance mode
Run adadmin--Goto step 5-Change Maintenance mode-step 2 Dis-able Maintenance mode
11. Bounce the database again
12. Start the apps services
./adstartal.sh apps/password

AD PATCH

When a customer reports a problem or SR (Service Request) a support analyst investigates the problem. If a patch doesn't exist to fix the problem, the problem is logged as a bug. Development researches the bug and creates a patch.

Patches in Oracle Applications are applied using the adpatch utility, this is referred to as AutoPatch. AutoPatch is also used to apply release updates. Release updates are large patches that fix bugs for all products. Release updates may also add new functionality and the release number is incremented (i.e., 11.5.9 - >11.5.10). The adpatch utility executes the *.drv files in order to apply the patch.

server patches may have three types of driver files: Copy, Database, and Generation. The Copy driver copies replacement files and links executables. The Database driver updates the database with SQL scripts and otherprograms. The Generate driver generates forms, reports, and message files. This is also the order that driver files should be applied: Copy, Database, Generation. Other components of a patch may include: Readme.txt, replacement files, SQL scripts or binary executables. Always read the Readme.txt file. Some patches may include a special version of the admin utilities, such as, adpatch or adadmin.A fourth type of driver file is now available with 11i. This driver simplifies copying Java classes and updates java files. The format is j.zip (Release 11i).

The readme file for a patch should include a description of the problem being fixed and how to apply the patch. The readme may require the use of included admin utilities (usually adpatch). The patch driver file includes a list of files that have been altered and a list of patches included in the patch set.

Types of application patches
• Stand-alone (one-off) Patch: Addresses a single fix or enhancement. Stand-alone patches are released only when there is an immediate need for a fix or enhancement that cannot wait until an aggregate bundling is available. Although stand-alone patches are intended to be as small as possible, they usually include any dependent files that have changed since the base release in order to form a complete patch that can be applied by any customer. The actual number of files changed will depend on the current code level on the system to which the patch is being applied.

• Rollup Patch (RUP): An aggregation of patches that may be at the functional level, or at a specific product/family release level. For example, a Flexfields rollup patch contains all the latest patches related to Flexfields at the time the patch was created. A Marketing Family 11.5.9 rollup patch contains all the latest Marketing patches released since, and applicable to, 11.5.9.

• Mini-pack: An aggregation of patches at the product level. For example, Inventory Mini-pack G (11i.INV.G) contains all the latest patches for the Inventory product at the time the mini-pack was created.Mini-packs are cumulative.

• Family Pack: An aggregation of patches at the product family level. For example, HR Family Pack C (11i.HR_PF.C) contains all the latest patches for products in the HR family at the time the family pack was created. Family packs are cumulative.

• Maintenance Pack: An aggregation of patches for all products in the E-Business Suite. For example, Release 11.5.10 Maintenance Pack contains all the latest code level for all products at the time 11.5.10 was created. Maintenance packs are numbered sequentially such as 11.5.8, 11.5.9, 11.5.10, and are cumulative.

Patches can also be organized by purpose.

• Diagnostic Patch: Used to gather additional information when a product failure cannot be reproduced by Oracle. The additional information will assist Oracle Support Services and Oracle Development in resolving the failure.• Interoperability Patch: Allows Oracle Applications to function properly with a newer version of the technology stack. Interoperability patches are typically required with new version of the database or Applications technology stack.

• Translated Patch: A non-English version of a patch. Release 11i supports 30 non-English languages. Customers who are using languages other than English, need to apply the corresponding translated patch(es) for the languages they are using in addition to any base US patch(es).

• Merged Translation Patch: Provided in real time (without requiring a translator) in the event a translated patch is not available when a customer needs it. A merged translation patch is applied just like a fully translated patch. The fully translated patch is escalated and is usually available within 24 hours. It can be applied safely on top of a merged translation patch.

• Translation Fix: Provided in the event a translation word choice is inappropriate. A translation fix is applied just like a translated patch, except there is no corresponding base US patch.

• New Feature Patch: Introduces new functionality and/or products. It is applied using standard patching utilities.

Sequence of activities performed by adpatch :

C Portion
=> Parse & Load the specified patch driver file
=> Check for patch integrity
=> Apply new applprod.txt if any
=> Perform version checking for the patch driver files
=> Copy driver files into installation area
=> Forecopy driver files into installation area (if any)
=> Screen out files that are not valid
=> Determine valid on-site files
=> Check if object modules exist to copy
=> Extract object modules from product libraries
=> Perform Version checking
=> Check if will copy object modules
=> Determine directories to create (if any)
=> Determine what executables to link
=> Determine forms to generate
=> Determine Oracle Report libraries to generate
=> Determine Oracle Reports to generate
=> Copy files into installation area
=> Archive object modules in the product libraries
=> Create directories
=> Relink executables
=> Perform second half of mirrored copies
=> Update Oracle Applications java Files

D -Portion
=> Run SQL and EXEC scripts

G-Portion
=> Generate Forms library files
=> Generate Forms Menu files
=> Generate Forms executables
=> Generate Report libraries
=> Generate Reports
=> Generate Graphics libraries
=> Generate Graphics
=> Generate Messages
=> Generate Workflow resource files
=> Update Patch History database
=> Copy applprod.tmp to applprod.txt (if needed)

General sequence of steps for worker processing

This is the sequence of steps that happen which is not visible in the front screen


Running SQL and EXEC commands in parallel...

1. CREATE TABLE fnd_install_processes
2. CREATE UNIQUE INDEX fnd_install_processes_u1 on fnd_install_processes
3. GRANT ALL ON fnd_install_processes TO APPS WITH GRANT OPTION
4. CREATE SYNONYM fnd_install_processes FOR APPLSYS.fnd_install_processes
5. CREATE TABLE AD_DEFERRED_JOBS(
6. CREATE UNIQUE INDEX AD_DEFERRED_JOBS_U1 on AD_DEFERRED_JOBS
7. GRANT ALL ON AD_DEFERRED_JOBS TO APPS WITH GRANT OPTION
8. CREATE SYNONYM AD_DEFERRED_JOBS FOR APPLSYS.AD_DEFERRED_JOBS
9. INSERT INTO fnd_install_processes (number of times depending on the no. of workers)*.

Reading jobs from FND_INSTALL_PROCESSES table ...
Done reading jobs from FND_INSTALL_PROCESSES table ...
Telling workers to read 'todo' restart file.
Done.

[Worker Processing]

Telling workers to quit...
All workers have quit.

10. DROP SYNONYM fnd_install_processes
11. DROP SYNONYM AD_DEFERRED_JOBS
12. DROP TABLE fnd_install_processes
13. DROP TABLE AD_DEFERRED_JOBS

AD Utilities in Oracle Apps R12

1. What are the AD utilities ?

AD Utilities (abbreviation from Applications DBA) are programs which perform a variety of tasks, including generating files, updating your system, merging and applying patches, installing off-cycle products.

These AD Utilities are executable files in $AD_TOP/bin

2. Which are the AD Utilities and their role ?

Utility	Executable/ Interface	Role
AD Administration	adadmin Oracle Application Manager	Performs maintenance tasks on the Oracle Applications file system and database.
AutoPatch	adpatch	Applies patches to the Oracle Applications and Oracle database (also you can add new languages and products as a patch).
AD Controller	adctrl	Which this utility you can restart, see the status of parallel workers in AutoPatch, AD Administration and AutoUpgrade.
AutoUpgrade	adaimgr	Upgrades your database code and objects from an old version to the last 11i version. This is a time consuming step.
AD Relink	adrelink	Used to re-link apps executables with product libraries. This must be done if some library definition is changed or an executable is corrupted.
AD Merge Patch	admrgpch	Used to merge multiple patches into a single one. This is useful when we have to apply many patches to reduce the patching time.
AD Splicer	adsplice	Used to register the off-cycle products (a new oracle released product which is not delivered with the initial package).
File Character Set Converter	adncnv	Used to convert a file from one character set to another.
AD Configuration	$AD_TOP/sql/adutconf.sql	Shows information about the installed configuration of the APPS.
AD Job Timing Report	$AD_TOP/admin/sql/adtimrpt.sql	Shows timing statistics about the parallel workers.
AD File Identification	adident	Shows the header file of one Oracle Application file. In the header we can see the version and the timestamp of the file.
License Manager	Oracle Application Manager	Licenses products, country-specific functionalities or languages.
Patch Wizard	Oracle Application Manager	Determines which patches was applied and which need to be applied.
Applied Patches	Oracle Application Manager	Keeps a history of the patches which have been applied.

3. How could I run an AD utility (like adpatch, adadmin, adctrl) ?

An AD utility starts like a normal executable file: type the name of the file to execute, press "Enter", answer the prompts. Type "abort" to any prompt to exit.

NOTES:

• You can restart the same utility after a failure by typing his name again at the OS prompt. However, the AD utilities, by default, will start running from the point where it was failed. The utility will ask you to confirm if you want to restart the utility from the beginning (Oracle recommends continuing a prior session to completion );
• AD utilities accept arguments and flags to change the execution behaviour of the AD utility. The arguments must be typed in lowercase without whitespace characters between them.

4. What are the restart files ?

The restart files are files used by the managers or workers to restart a failed job. When a job complete the restart files are deleted, but backup files still are saved on the system with the extensions .bak, .bk2 or bk3.

The restart files are located in the $APPL_TOP/admin/<SID>/restart directory.

Oracle Application R12 Architecture & Shared Application Tier File System

Oracle E-Business Suite (EBS)

§  What is Oracle Applications/Oracle E-Business Suite?

To facilitate big businesses, Oracle Corporation have created collection of software in the category of ERP (Enterprise Resource Planning) known as modules, that are integrated to talk to each other and known as Oracle Applications or E-Business Suite.

Oracle Inventory Module deals with the items you maintain in stock, warehouse etc.

Oracle Receivables and Oracle Order Management are dealing with customers like orders given by Customers and Money collected from customers.

Oracle General Ledger receives information from all the different transaction modules and summarizes them in order to create profit and loss statements, reports

for paying Taxes etc.

Oracle Cost Management helps to maintain the costs of items in your inventory and the immediate modules that it interacts with are Oracle Inventory, Oracle Bills of Material, Order Management.

§  Oracle E-Business Suite Previous Releases

10.7 : Oldest Release of Oracle ERP which is character, thin client based. Oracle has stopped support for this release from year 1998.

11 :

11i :

R12 : Latest Release Of EBS by Oracle.

§  Oracle EBS R12 Architecture

R12 file system has come up with new model – Code, Data, Configurations are segregated nicely to have easy maintenance, to avert NFS mount issues on shared appl tier configuration systems. Auto-config will not write anything in APPL_TOP, COMMON_TOP area in R12. All instance specific configurations, log files are written in INST_TOP area. Instance Home provides the ability to share Applications and technology stack code among multiple instances.Oracle EBS R12 Applications is a three-tiered architecture.

1. Desktop Tier

2. Application Tier

3. Database Tier

The Oracle Applications Architecture is a framework for multi-tiered, distributed computing that supports Oracle Applications products. In this model, various servers or services are distributed among three levels, or tiers.

First we need to understand the important points like SERVER, NODE, MACHINE and TIER.

Server: Server is a process or group of processes that run on a single machine and provide a particular functionality.

Tier: A tier is a logical group of services, which spread across more than one physical machine.

Machine or node: A machine is referred to as a node, particularly in the context of a group of computers that work closely together in a cluster.

Desktop Tier:

The Forms client applet must be run within a Java Virtual Machine (JVM) on the desktop client. The Sun J2SE Plug-in component allows use of the Oracle JVM on web clients, instead of the browser’s own JVM. This is implemented as a browser plug-in.

Please Note: In 11i, we use Jinitiator for the for the JVM.

The Application Tier:

In Release 12, the application tier contains Oracle Application Server 10g (OAS10g). Three servers or service groups comprise the basic application tier for Oracle Applications:

·         Web services

The Web services component of Oracle Application Server processes requests received over the network from the desktop clients.

·         Forms services

Forms services in Oracle Applications Release 12 are provided by the Forms listener servlet or Form Socket mode, which facilitates the use of firewalls, load balancing, proxies, and other networking options.

·         Concurrent Processing server

Processes that run on the Concurrent Processing server are called concurrent requests. When you submit such a request, either through HTML-based or Forms-based Applications, a row is inserted into a database table specifying the program to be run. A concurrent manager then reads the applicable requests in the table, and starts the associated concurrent program.

Please Note: There is no concept of an Administration server in Release 12. By default, patching can be undertaken from any application tier node.

Database Tier:

The database tier contains the Oracle database server, which stores all the data maintained by Oracle Applications.

§  R12 EBS Directory Structure

Techstack Components :

DB_TIER

·         10.2.0.2 RDBMS ORACLE_HOME

APPL-TIER

·         10.1.2 C ORACLE_HOME / FORMS ORACLE_HOME (8.0.6 ORACLE HOME as in R11i)

·         10.1.3 Java ORACLE_HOME/OC4J ORACLE_HOME (iAS ORACLE_HOME as in R11i)

·         INSTANCE_TOP : Each application tier has a unique Instance Home file system associated

There are two versions of Oracle Application server 10g (OAS10g) used,

·         The Oracle Application Server 10.1.2 ORACLE_HOME (sometimes referred to as the Tools, C, or Developer ORACLE_HOME) replaces the 8.0.6 ORACLE_HOME provided by Oracle9i Application Server 1.0.2.2.2 in Release 11i.

·         The Oracle Application Server 10.1.3 ORACLE_HOME (sometimes referred to as the Web or Java ORACLE_HOME) replaces the 8.1.7-based ORACLE_HOME provided by Oracle9i Application Server 1.0.2.2.2 in Release 11i.

                                    (ORACLE EBS R12 ORACLE_HOMES )

Oracle EBS R12 file system has come up with new model - Code, Data, Configurations are segregated for easy maintenance, to avert NFS mount issues on shared appl tier configuration systems. Auto-config will not write anything in APPL_TOP, COMMON_TOP area in R12. All instance specific configurations, log files are written in INST_TOP area. Instance Home provides the ability to share Applications and technology stack code among multiple instances.

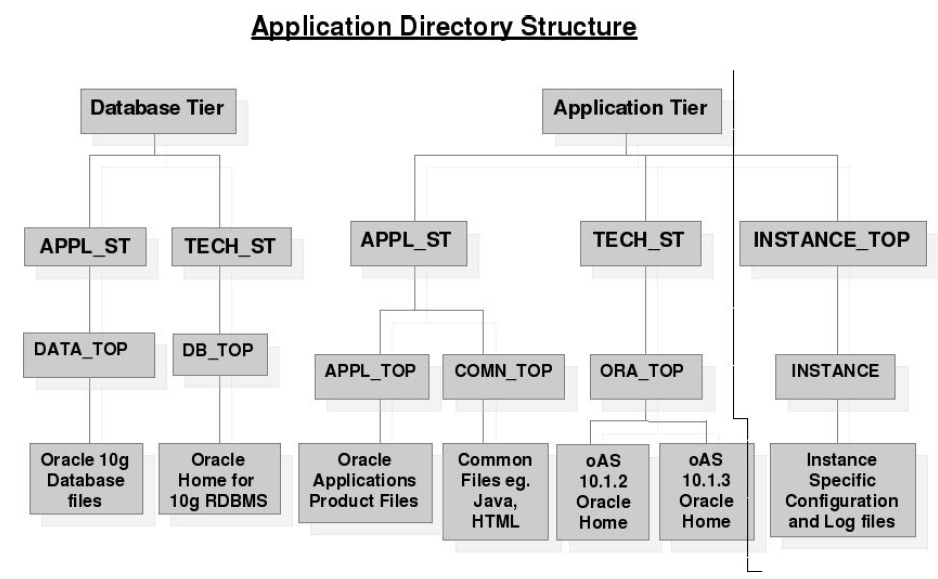

The image shown below describes the complete directory structure for complete e-bs installation i.e. DB_TOP, APPL_TOP and new INST_TOP. If you look into the INST_TOP we will find that it only contains all the configuration files, start-stop scripts, log files, certificate files, pid files etc, so as to make DB_TOP and APPL_TOP untouched for any instance specific changes.

INSTANCE TOP: Instance home is the top-level directory for an Applications Instance which is known as Instance Home and is denoted the environment variable $INST_TOP. This contains all the config files, log files, SSL certificates etc.

Advantages of new INSTANCE HOME:

·         The additional Instance Home makes the middle tier easier to manage and organized since the data is kept separate from the config files.

·         The Instance Home also has the ability to share the Applications and Technology stack code across multiple instances.

·         Another advantage of the Instance Home is that the Autoconfig writes only in INST_TOP so APPL_TOP and ORACLE_HOME can also be made read only file system if required.

·         To create a new instance that shares an existing middle-tier, just create a new instance_top with proper config files and NFS Mount the middle tier in the

INSTANCE TOP – STRUCTURE:

$INST_TOP: $APPS_BASE/inst/apps/$CONTEXT_NAME/

 /admin

    /scripts                                 : ADMIN_SCRIPTS_HOME: Find all AD scripts here

 /appl                                         : APPL_CONFIG_HOME. For standalone envs, this is set to $APPL_TOP

    /fnd/12.0.0/secure           : FND_SECURE: dbc files here

    /admin                                  : All Env Config files here

/certs                                         : SSL Certificates go here

/logs                                           : LOG_HOME: Central log file location. All log files are placed here (except adconfig)

/ora                                            : ORA_CONFIG_HOME

   /10.1.2                                     : 'C' Oracle home config, Contains tnsnames and forms listener servlet config files

   /10.1.3                                     : Apache & OC4J config home, Apache, OC4J and opmn This is the 'Java' oracle home configuration for OPMN, Apache and OC4J

/pids                                           : Apache/Forms server PID files here

/portal                                       : Apache's DocumentRoot folder

Shared Application Tier File System

We can configure multiple application node machines working with a single E-Business Suite database node. This creation of a “multi-node” E-Business Suite instance is frequently done to lower cost of ownership (many small machines are cheaper than one big one), increase fault tolerance (one machine fails, others do not), or scale the instance (support more users and a greater load).

When configuring Oracle E-Business Suite to use a shared application tier file system, the application tier node can be configured to perform any of the standard application tier services, such as Forms, Web, and Concurrent Processing (Batch).
Note the following definitions:

Node
A node/server/instance is a logical set of processes running on one hardware machine. In a single-node installation of Oracle E-Business Suite, all the Applications processes (including the database processes) run on one node, whereas in a multi-node installation, the processes are distributed across multiple nodes.
A multi-node installation of Release 12 supports both shared and non-shared application tier file systems. An application tier file system consists of:

• APPL_TOP file system (APPL_TOP and COMMON_TOP directories).
• Application tier technology stack file system (OracleAS 10.1.2 and 10.1.3 Oracle Homes).
• Instance Home (INST_TOP) file system. Each application tier has a unique Instance Home file system associated with it.

Service

A service is a functional set of Oracle E-Business Suite application processes running on one or more nodes. Where applicable, the term ’service’ is replacing the more traditional term of ’server’.

Application Tier Services

The following are the major application tier services:

• Root services
• Web Entry Point services
• Web Application services
• Batch Processing services
• Other services

So if you have two nodes,one will serve as Primary Node and other will serve as Secondry Node. You can configure both the Application tier node as follows:

Primary Application Tier Node

A primary application tier node is the first application tier node where the APPL_TOP, COMMON_TOP, OracleAS 10.1.2 Oracle Home and OracleAS 10.1.3 Oracle Home are installed and configured.

Secondary Application Tier Node

A secondary application tier node is an application tier node where APPL_TOP, COMMON_TOP, 10.1.2 Oracle Home and 10.1.3 Oracle Home are visible and configured. The APPL_TOP, COMMON_TOP, OracleAS 10.1.2 Oracle Home and OracleAS 10.1.3 Oracle Home file system is mounted to this node from the primary application tier node, or from an NFS server.
Instance Home

Note :  In a shared file system, each application tier will have a unique Instance Home, which should be located on the local file system.

Shared Application Tier File System Architecture
In a shared file system, all application tier files (with the specific exception of the Instance Home file system) are installed on a shared disk resource, which is mounted on each application tier node. Any application tier node can be configured to perform any of the standard application tier services, such as Forms, Web and Concurrent Processing (Batch) services. All changes made to the shared file system are immediately accessible to all application tier nodes.

Shared Application Tier File System Layout
When configuring Oracle E-Business Suite to use a shared application tier file system, an application tier node can be configured to perform any of the standard application tier services, such as Forms, Web, or Concurrent Processing (Batch) services. An application tier will have a unique Instance Home associated with it that cannot be shared with other application tiers. You can configure the services running on an application tier node to match the node’s intended role

Example Shared File System

The following is an example of mount points shared on each application tier node:

• COMMON_TOP: /ebiz/oracle/VIS/apps/apps_st/comn
• APPL_TOP: /ebiz/oracle/VIS/apps/apps_st/appl
• OracleAS 10.1.2 ORACLE_HOME: /ebiz/oracle/VIS/apps/tech_st/10.1.2
• OracleAS 10.1.3 ORACLE_HOME: /ebiz/oracle/VIS/apps/tech_st/10.1.3

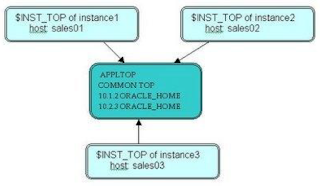

In the figure shown below, entitled “Shared Application Tier File System”, Server-appl_node1 is the primary application tier node, and uses the file systems “/ebiz/oracle/VIS” and “/ebiz/oracle/inst”. The file system “/ebiz/oracle/inst” contains the Instance Home, and “/ ebiz/oracle/VIS ” contains the APPL_TOP, COMMON_TOP, OracleAS 10.1.2 and 10.1.3 Oracle Home.

Server-appl_node2 is the secondary application tier node, and the shared file system “/ebiz/oracle/VIS” is also mounted on this node. The file systems “/ebiz/oracle/inst/apps/VIS_appl_node1″ and “/ebiz/oracle/inst/apps/VIS_appl_node2″ are only visible on the respective nodes.
